XGA061

The resolution of XGA061 series products is 1024×768, the display size is 0.61’’, and the pixel size is 12μm. It has various display types such as basic full color, high-brightness full color, and high-brightness single green. It is the main product used for high cost-effective in the fields of high-end observation

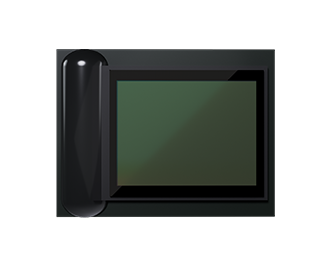

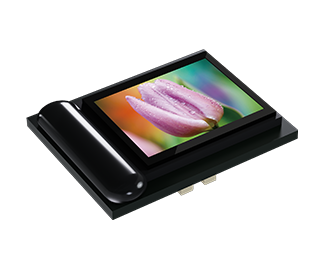

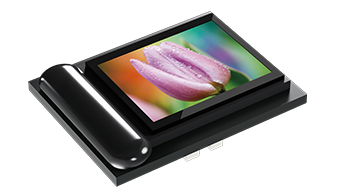

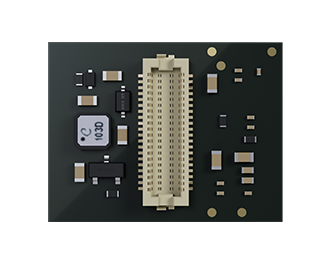

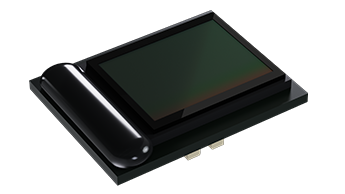

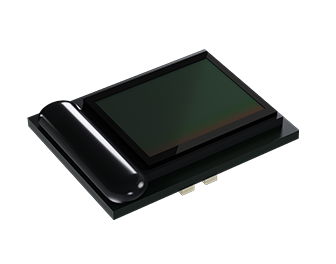

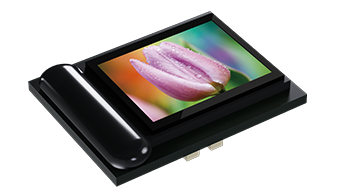

Product pictures

Product characteristics

Support 24bit-RGB, 8/16/24bit-YCbCr, BT.656 format
Ultra-low-power mode for extreme low-power designs
PWM dimming mode to keep white balance consistent
High contrast, Gamma built-in, adjustable curve
With image digital brightness, contrast adjustment function
The screen temperature is readable, the brightness is adaptively adjusted, and the display is clear at high and low temperatures
Support image horizontal/vertical mirroring, support arbitrary adjustment of display position
Compatible with low-resolution images to display anywhere on the screen

Product characteristics

Product series		OLP061XGC02		OLP061XGG02	OLP061XGC03
Features		Low power full color	High performance full color	Ultra brightness single green	Ultra brightness full color
Resolution		1024×768
Pixel size		12цm×12цm
Display size		0.61"（12.29mm×9.22mm）
Pixel arrangement		RGB bar
Brightness uniformity		≥ 90%
Contrast		10000:1
Grayscale		Level 256
Refresh rate		25Hz～75Hz
Video interface		24bit-RGB、8/16/24bit-YUV、ITU-R BT656
Maximum brightness		300nit	400nit	10000nit	4000nit
Typical brightness		100nit	200nit	5000nit	4000nit
Typical power consumption		60mW@25Hz	150mW	170mW	380mW
Supply voltage	Analog	+5V
	Digital	+1.8V
Operating temperature		-45℃～+65℃
