Guozhao Optoelectronics

0.37''

OLED Micro display

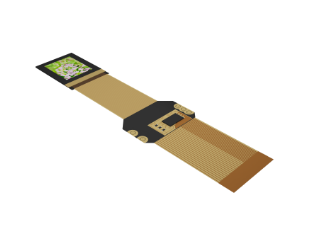

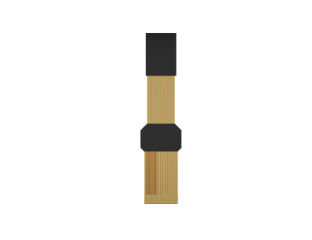

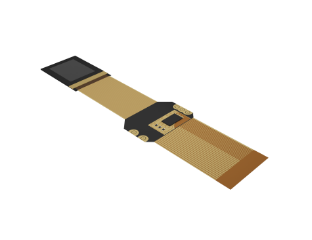

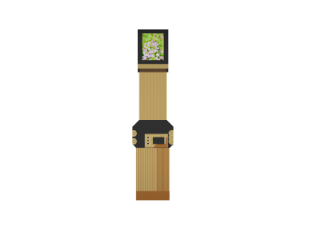

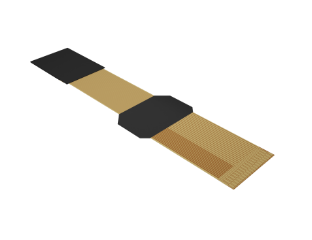

The resolution of SXGA037 series products is 1280×1024, with 0.37 inch display size and 5.67μm pixel size, COB and COF two chip packaging ways, diverse series including normal brightness full color and high brightness mono green, which are mainly applied in the civilian viewing field.

SXGA037

Product characteristics

Single MIPI signal (4lane) input, support D-PHY v1.2 1.0Gbps/lane, support VESA-DSC v1.2 in-chip decoding
Single MIPI signal (4lane) input, support D-PHY v1.2 1.0Gbps/lane, support VESA-DSC v1.2 in-chip decoding
Low power consumption, with PWM brightness, consistent white balance
Brightness adaptive adjustment, high and low temperature display clearly
High contrast, embedded Gamma, adjustable curve
Support horizontal and vertical image mirroring, support any adjustment of the display position
With image digital brightness, contrast adjustment function
Compatible with low resolution images for arbitrary display within the screen range

Product characteristics

Product series		SXGA037HW01C	SXGA037HW02C	SXGA037HW01G
Features		COF packaging color	COB packaging color	High brightness mono green
Resolution		1280×1024
Pixel size		5.67μm×5.67μm
Display size		7.26mm×5.81mm(0.37 inch diagonally)
Pixel arrangement		RGB hexagon
Brightness uniformity		≥ 90%
Contrast		10000:1
Gray scale		Level 256
Refresh rate		25Hz~120Hz
Video interface		MIPI（4lane），D-PHY v1.2 1.0Gbps/lane
Maximum brightness		600nit	600nit	10000nit
Typical brightness		300nit	300nit	5000nit
Typical power consumption		130mW	130mW	150mW
Supply voltage	VAN	+5.5V
	VDD	+1.8V
	VEE	-4.5V
Operating temperature		-20℃~+65℃
