0.6''

OLED Micro display (1280×1024 Resolution)

SXGA060 series products have the resolution of 1280×1024, with the 0.6 inch display size and 9.3μm pixel size. They have various series including normal brightness color, high brightness color, and high brightness mono green. It is the our high performance products applied in the field of high-end viewing, digital sight etc.

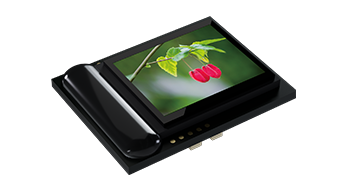

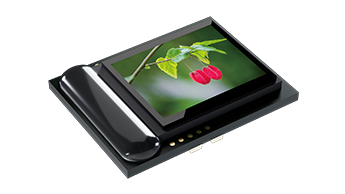

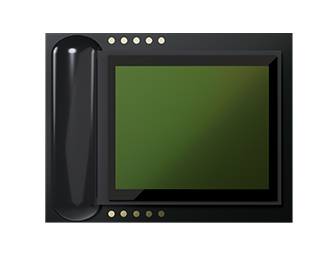

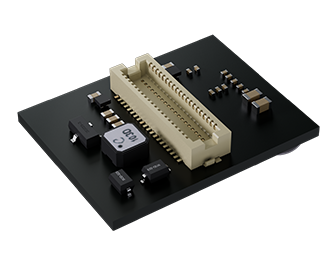

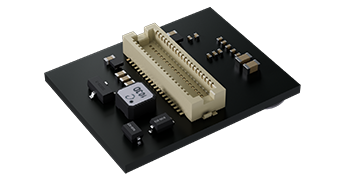

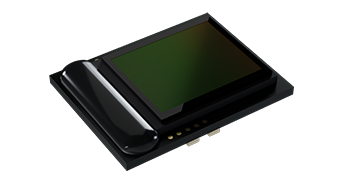

Product pictures

Product characteristics

High contrast
The communication interface supports I2C
The video interface supports RGB, YCbCr, ITU-R BT.656, BT.1120
Embedded temperature sensor
Support the PWM-mode brightness adjustment function
Support automatic brightness-temperature compensation function
Support the image brightness and contrast digital signal enhancement function
Support horizontal / vertical inverse display of video images
Support image display position adjustment
Support low-resolution partial display and full-screen stretching display
Support the low power consumption mode

Product characteristics

Product Series		SXGA060HW01C	SXGA060HW01G	SXGA060HW02C
Features		Low power consumptionfull color	Ultra brightness mono green	Ultra brightness full color
Resolution		1280×1024
pixel size		9.3цm×9.3цm
Display size		11.9mm×9.5mm (0.60 inch diagonally)
pixel arrangement		RGB vertical stripe
Brightness uniformity		≥ 90%
Contrast		10000:1
grayscale		Level 256
refresh rate		25Hz～75Hz
video interface		24bit-RGB, 16bit-YCbCr, ITU-R BT.656, BT.1120
maximum brightness		300nit	12000nit	4000nit
Typical brightness		100nit	12000nit	4000nit
Typical power consumption		70mW@25Hz	280mW	390mW
Supply voltage	VDN	+5V
	VDD	+1.8V
Operating temperature		-45℃～+65℃
