0.39'' Eyepiece
In order to provide costeffective and high performance XGA039 series micro display eyepiece kit, GZOT developed the 039N14EV1M optical module. This product has many advantages such as small size, light weight, simple structure, clear display, etc., which is convenient for users to develop the whole product.

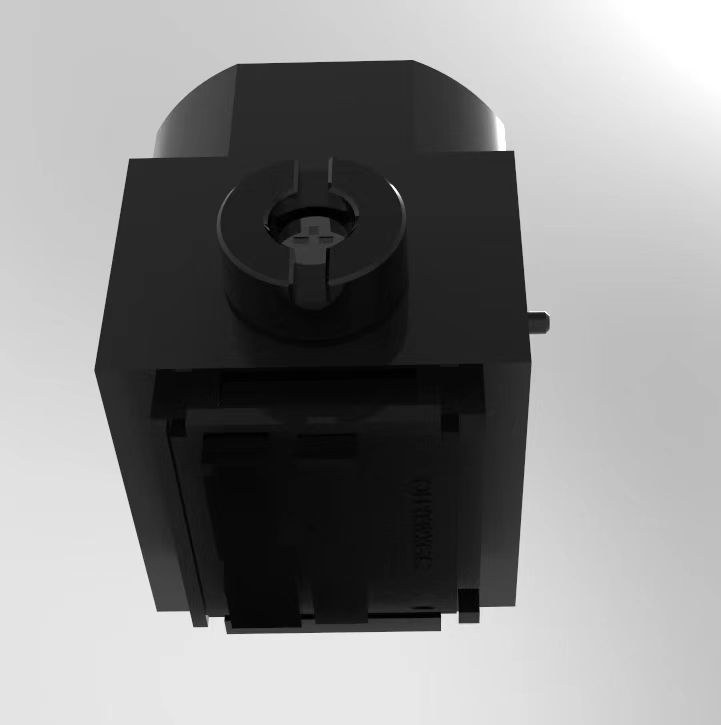

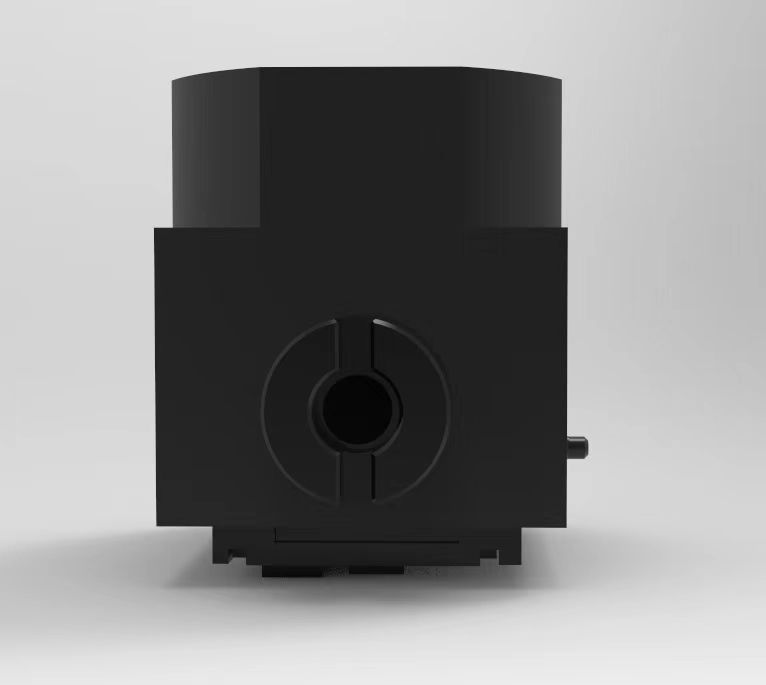

XGA039 Optical Module Picture
Product characteristics


Core parameter indicators

Display Size

0.39 inch OLED .Micro display

Magnification

14x

MTF

≥70%  40Lp/mm

FOV

25.2°(H)× 19.0°(V),32.0°(D)

Exit Pupil Dismeter

7mm

Exit Pupil Distance

23mm

Dioptric

-5D~+5D

Focal Length

15.62mm

Weight

11.5g
