0.6''

OLED Micro display (800×600 resolution)

The resolution of SVGA060 series products is 800×600, with the 0.6 inch display size and 15μm pixel size. diverse display series including normal brightness full color, high brightness full color, and high brightness mono green. It is the company's entry level flagship in the high-end observation, sighting and other fields.

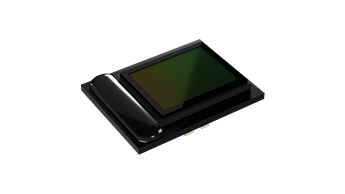

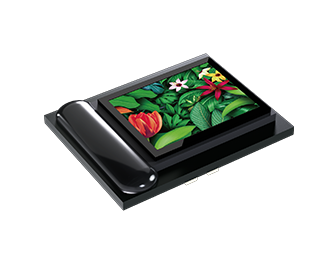

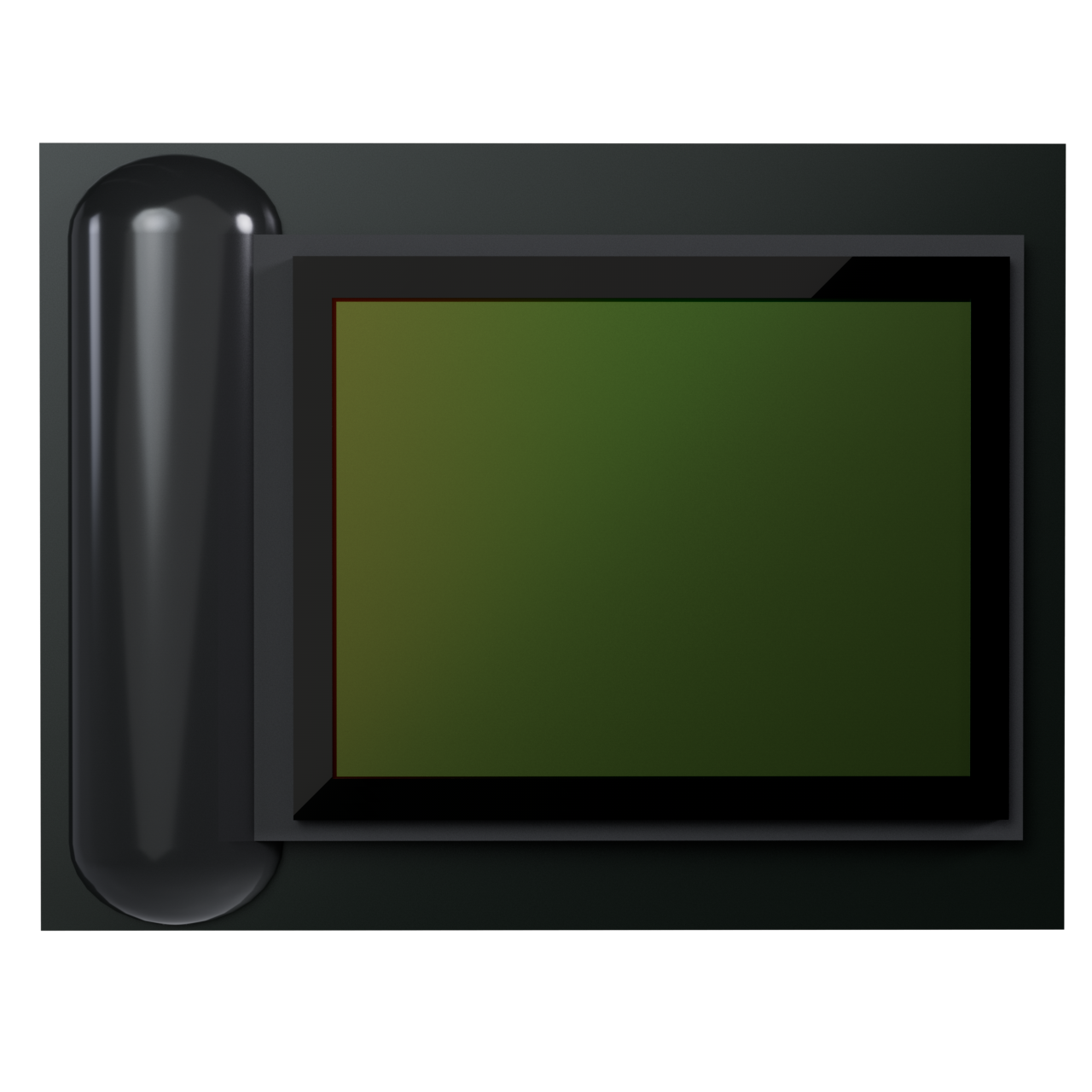

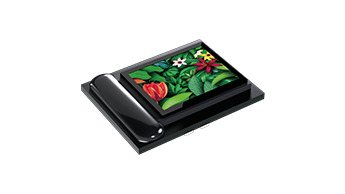

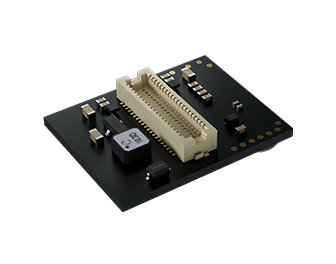

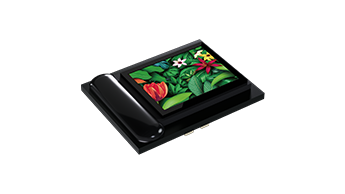

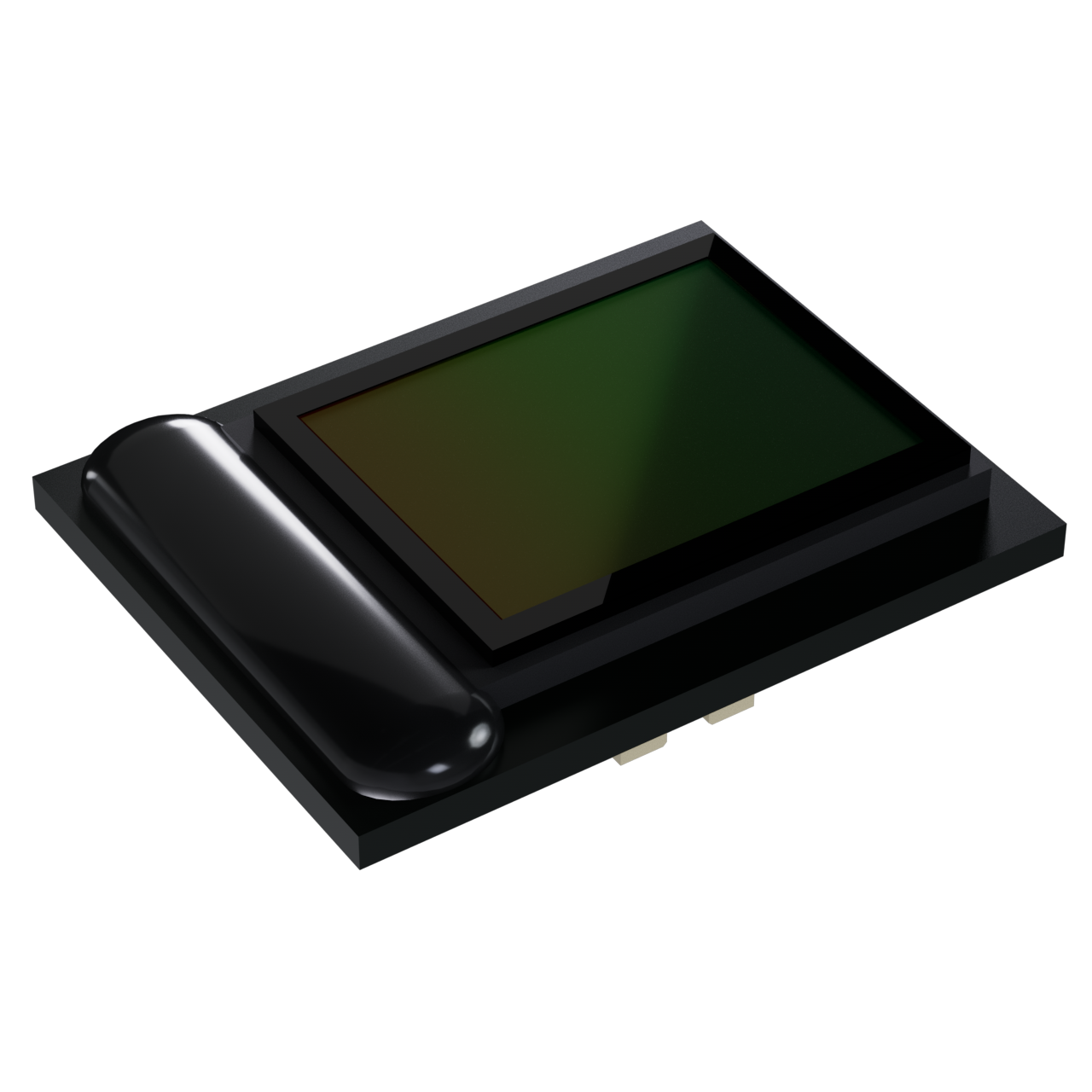

Product pictures

Product characteristics

Support 24bit-RGB, 8/16/24bit-YCbCr, ITU-R BT.656
Ultra low power consumption mode for extreme low power designs
PWM dimming mode to keep white balance consistent
High contrast, Embedded Gamma , adjustable curve
With image digital brightness, contrast adjustment function
Embedded temperature sensor, can read screen temperature in real time
Support image display position adjustment and timing movement function
Support image horizontal and vertical mirroring

Product characteristics

Product series		SVGA060HW01C	SVGA060HW02C	SVGA060HW02G	SVGA060HW03C
Features		Low power consumption full color	High brightness full color	Ultra brightness Mono green	Ultra brightness full color
Resolution		800×600(808×608 reserved)
Pixel size		15цm×15цm
Display size		12.0mm×9.0mm(0.6 inch diagonally)
Pixel arrangement		RGB bar
Brightness uniformity		≥ 90%
Contrast		10000:1
Grayscale		Level 256
Refresh rate		25Hz～75Hz
Video interface		24bit-RGB , 8/16/24bit-YUV , ITU-R BT.656
Maximum brightness		300nit	800nit	10000nit	4000nit
Typical brightness		100nit	800nit	5000nit	4000nit
Typical power consumption		40mW@25Hz	300mW	150mW	360mW
Supply voltage	Analog	+3.3V	+5V
	Digital	+1.8V	+1.8V
Operating temperature		-45℃～+65℃
