HD036

HD036 series silicon-based OLED micro-display The HD036 series products have the resolution of 1280×720, with the size of 0.36’’, and the pixel size of 6.3μm. High-brightness full color, red&green bi-color and single green color are available. Thanks to the excellent brightness and color gamut, this series products are our core flagship product in the high-end AR field.

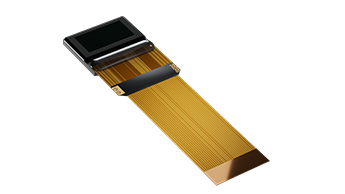

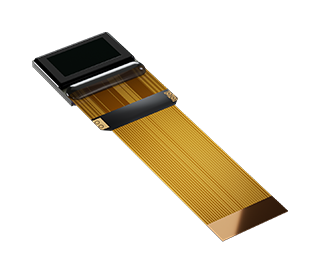

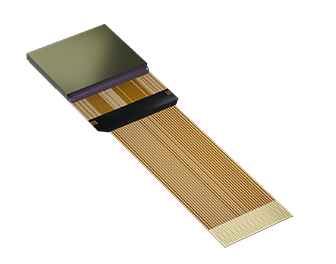

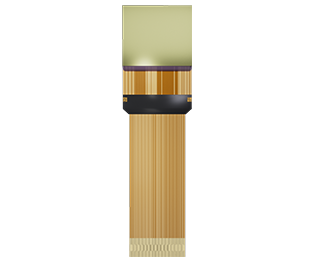

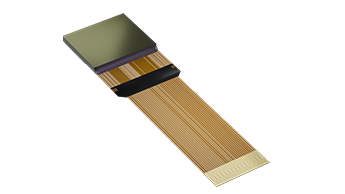

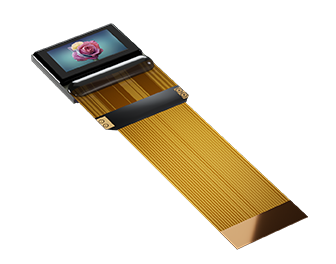

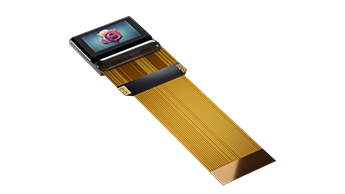

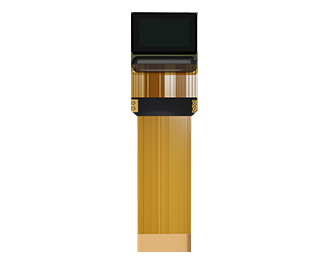

Product pictures

Product characteristics

4000nit high brightness, high contrast, high color gamut
4030PPI high pixel density, Real-RGB pixel design
Low power consumption, low heat generation, easy to miniaturize design
LVDS interface, compatible with VESA/JEIDA standard video format
With image digital brightness, contrast adjustment function
Built-in temperature sensor, can read screen temperature in real time
Brightness adaptive adjustment to maintain brightness stability
Support image horizontal/vertical mirroring and arbitrary adjustment of display position

Product characteristics

Product Series	GZ036PCC02	GZ036PCH02
Features	Ultra brightness color		Ultra brightness red and green two-color
Maximum display	1280×720
Pixel size	6.3цm×6.3цm
Display size	0.36"（8.06mm×4.54mm）
Pixel arrangement	RGB六边形
Brightness uniformity	≥ 90%
Contrast	10000:1
Grayscale	Level 256
Refresh rate	25Hz～90Hz
Input video signal format	LVDS
Maximum brightness range	3000nit～5000nit		8000nit～12000nit
Typical brightness	4000nit		10000nit
Typical power consumption	260mW		260mW
Supply voltage	+1.8V、+6V、-6V
Operating temperature	-20℃～+65℃
