Guozhao Optoelectronics

0.96''

OLED Micro display

The SXGA+096 series has the resolution of 1400×1050 with 0.96 inch display size and 14μm pixel size, diverse series incliding High performance full color and high brightness mono green, this series are mainly applied in the AR/VR head-mounted products and other near-eye display devices

Product characteristics

High contrast and high color gamut
Dual LVDS interface, compatible with VESA/JEIDA standard video formats
Support I2C universal serial protocol, and can configure image movement, inverse display, brightness/contrast adjustment online
Built in temperature sensor and automatic temperature - brightness compensation function
Built-in PWM mode dimming function, which can ensure the color temperature and Gamma consistency under the full brightness range

Product characteristics

Product Series	SXGA+096HW01C	SXGA+096HW03G

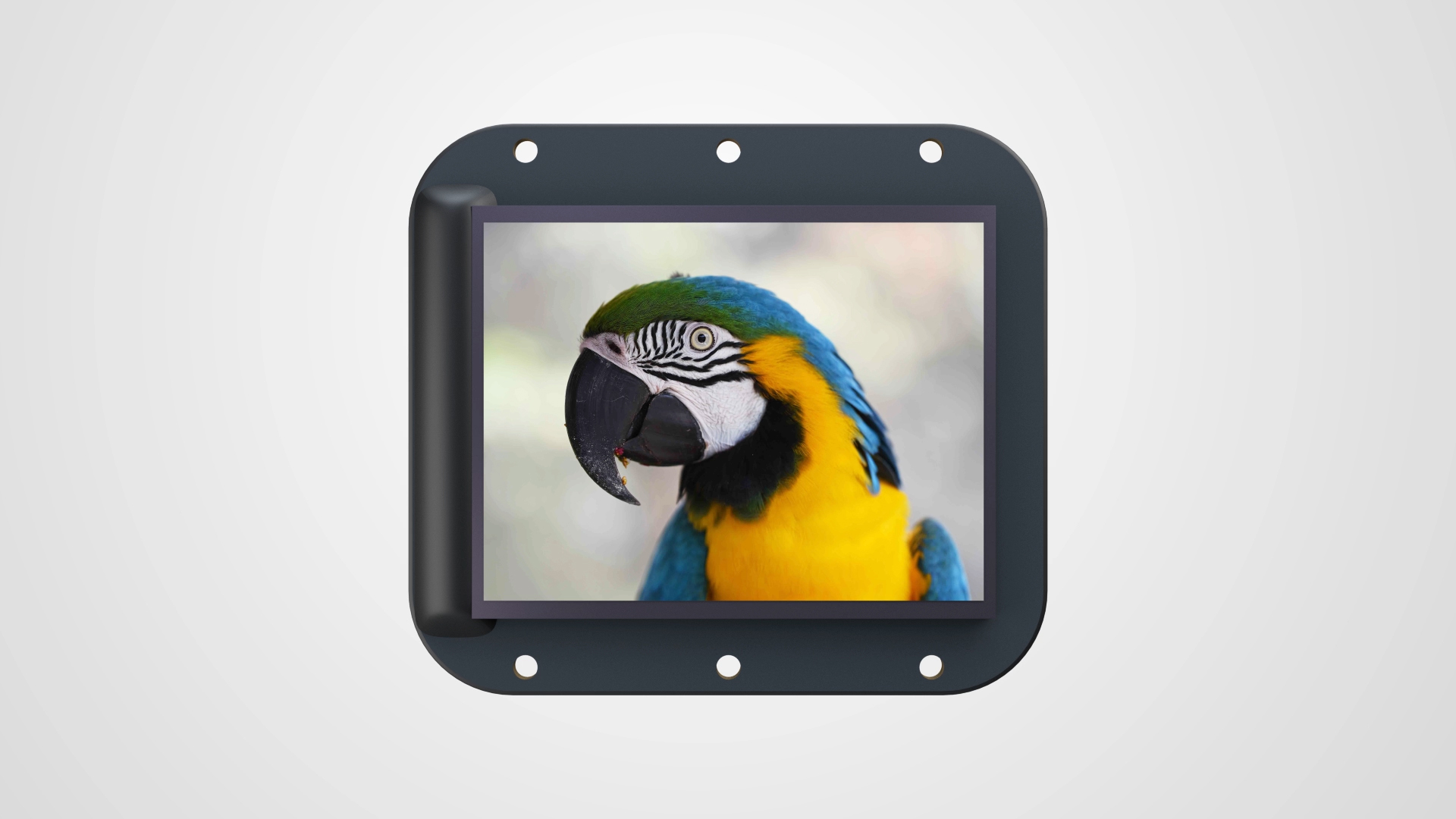

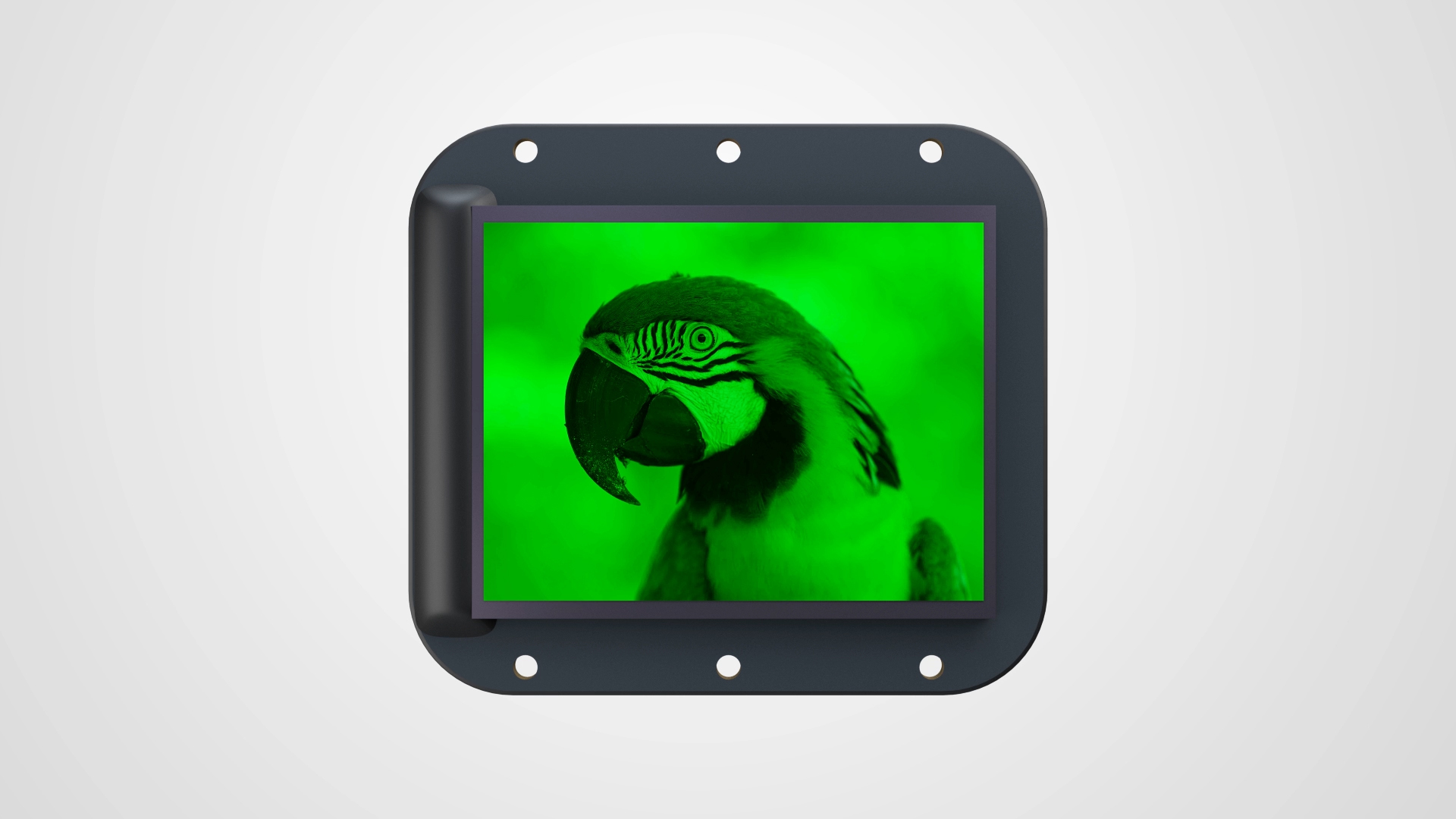

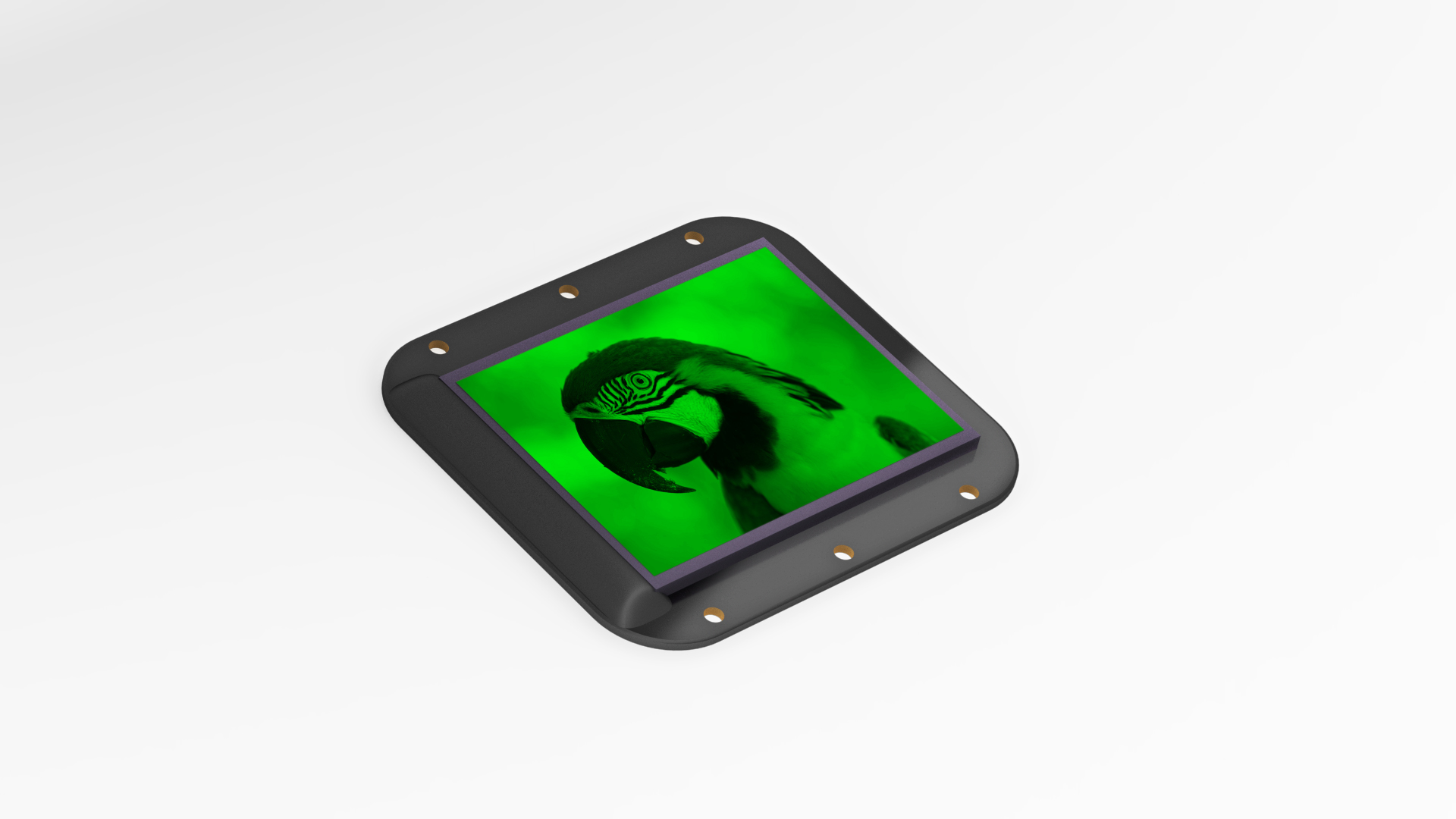

Type	High performance full color	High brightness mono green
Resolution	1400×1050
Pixel arrangement	RGB Hexagon	RGB Vertical Bar
Pixel size	14μm×14μm
Display area	19.6mm×14.7mm ( 0.96 inch diagonally)
Refresh Rate	30Hz~75Hz
Brightness Uniformity	≥90%
Contrast	＞10000:1

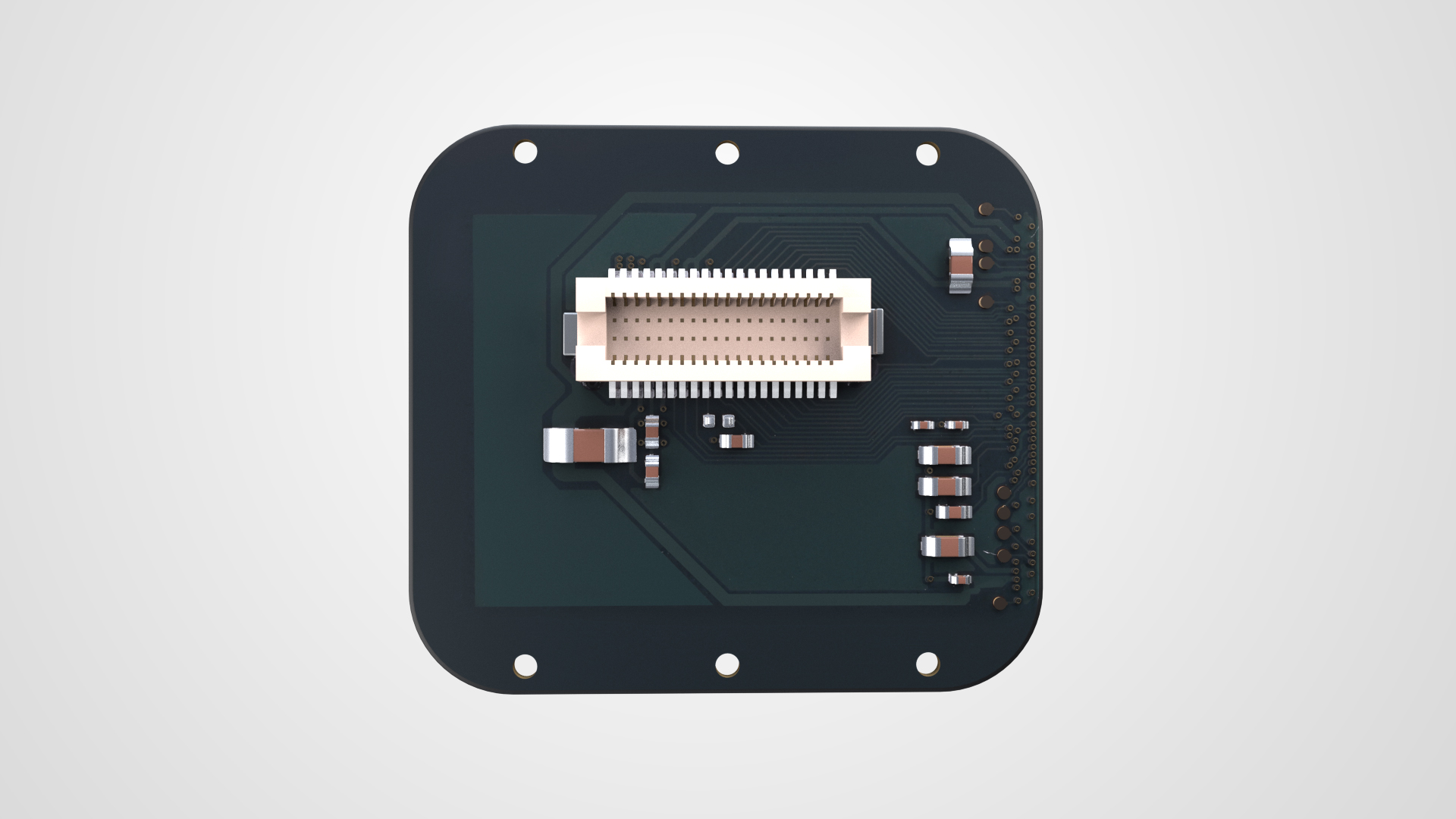

Video interface	Dual LVDS
Gray Levels	Up to 256
Maximum brightness	800nit	10000nit
Typical brightness	450nit	5000nit
Voltage	1.8V , 3.3V , 5V
Operating Temperature	+45℃~+65℃
